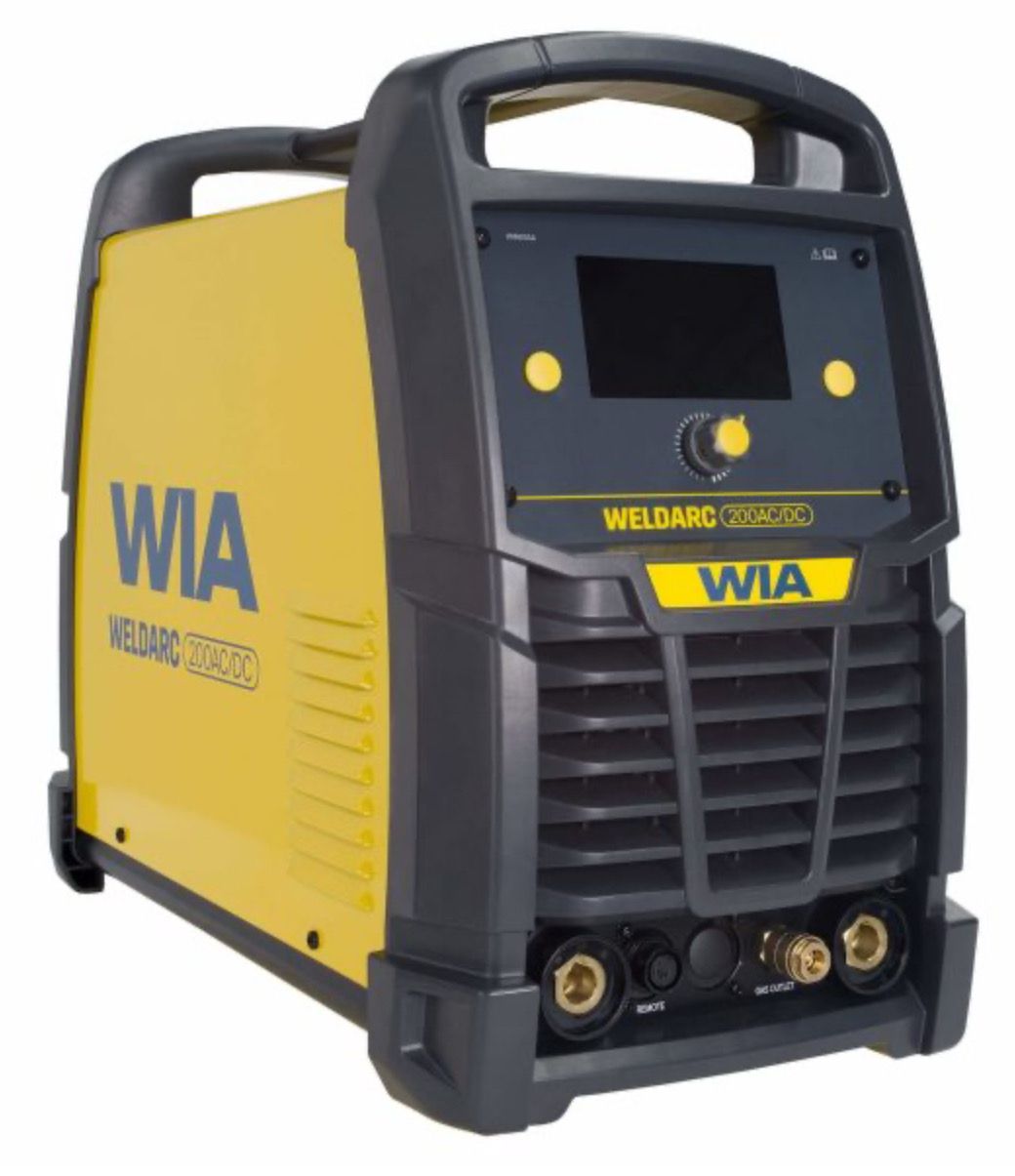

WIA Weldarc 200AC/DC STICK/ TIG Welder

The  WIA Weldarc 200 AC/DC   is a professional-grade Stick/TIG welder designed for intermediate to advanced welders who require AC TIG capabilities for high-precision aluminum welding. Equipped with a digital LCD interface, this welder allows for quick setup using pre-set parameters and memory selection. It features HF Start and Pulse TIG functions for superior weld quality and control. With support for foot control adjustment, the Weldarc 200 AC/DC ensures precise and premium welding results. Built with high-quality components, it comes with a 3-year warranty, making it a reliable choice for demanding applications.

Key Features:

• Processes:  TIG, Stick
• Single Phase:  15 Amp supply plug
• Voltage Reduction Device:  Enhances safety
• Power Factor Correction:  Improves efficiency
• IP21S Protection Rating:  Suitable for sheltered environments
• Portable:  Weighs only 17kg, easy to transport
• AC TIG:  Ideal for aluminum welding
• LCD Interface:  Quick setup with pre-set parameters and memory selection
• Pulse TIG:  Provides greater heat control, increasing weld penetration, speed, and quality
• HF Start:  Ensures easy non-contact arc starting, extends tungsten life, and reduces weld inclusions
• Fan-on-Demand™ Cooling Fan:  Minimizes noise, energy use, and contaminants
• 3-Year Warranty:  Ensures long-term reliability

Applications:

• Repair & Maintenance
• Aluminum Boat Fabrication
• Motor Sport Fabrication

Specifications:

Machine Specifications:

• Primary Voltage:  240 VAC-50/60Hz
• Rated Primary Current:  11 Amps
• Max Primary Current:  20 Amps
• Recommended Generator Power:  5 kVa
• Supply Plug:  15 Amp
• Weight:  17kg

Stick Specifications:

• Output Range:  10A/20.4V-160A/26.4V
• Rated Output @ 40°C (10 min):
  • 160A/26.4V @ 30%
  • 114A/24.6V @ 60%
  • 88A/23.5V @ 100%

TIG Specifications:

• Output Range:
  • AC:  15A/10.6V-200A/18V
  • DC:  10A/10.4V-200A/18V
• Rated Output @ 40°C (10 min):
  • 200A/18V @ 30%
  • 142A/15.7V @ 60%
  • 110A/14.4V @ 100%
• Material Thickness Range:  Welds up to 8mm aluminum plate, single pass

Package Includes:

• Work Clamp:  3m
• Industrial Twist Lock Electrode Holder:  3m
• TIG Torch:  8m
• TIG Starter Kit
• Argon Gas Regulator
• Gas Hose
