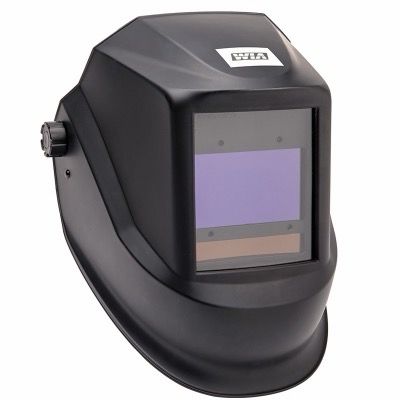

WIA Auto-Darkening OpticFX Nero Welding Helmet

WIA SH300001 Welding Helmet Optic Fx Nero

Features:

• Suits Stick, MIG, TIG & Plasma Cutting.
• Enhanced Optic Clarity  - Allows the user to see a full spectrum of colours, providing a clearer, more detailed view of the weld.
• Intuitive Digital Controls  - Simple design and large push buttons allow for easy mode/setting adjustments.
• Australian Standards  - Tested in Australia, the lens and helmet comply with Australian Standards AS/NZS 1338.1 (Auto-Darkening) and AS/NZS 1337.1 B (High Impact).
• Operator Comfort  - High quality headgear - fully adjustable, the headgear comes fitted with a large back cushion and an extra top band for better fit and comfort. Weighs only 555g
• Large Viewing Area  - With a 100 x 60mm viewing area, the operator gets a better visual of the working area.
• Variable Shade Control  - Variable control for adjustment of shade, lens sensitivity and delay for maximum control when welding. Shade 9-13.
• Magnifying Lens Holder  - Built-in provision for magnifying lens*,if  required. *Magnifying lens not included.
• Battery Powered with Solar-Assist  - The replaceable batteries will deliver up to 1900 hours of interruption free welding using shade 9 with MIG, Stick, TIG and Plasma power sources. Battery life is extended by inbuilt UV solar cells which absorbs power from the arc while welding – meaning your helmet will always be ready when you are.
• Grind Mode  - Comes standard with Grind Mode, meaning you can use one helmet for all your welding requirements - including weld preparation and clean-up.
• Lens Delay Control  - Used to adjust the time for the lens to switch to clear state after welding. Useful in eliminating bright rays present in high amp applications. Adjusts from 0.1 second-min to 0.9 second-max.
• 4 Arc Sensors  - Provides continuous arc sensing capability. Lens automatically switches from light state 4 to adjustable welding shades 9-13 when an arc is struck. Lens darkening reaction time 1/12,500 sec.
• Sensitivity Control  - Sensitivity control makes the lens more responsive to different light levels in various welding processes. Use mid-range (2-3) sensitivity setting for most applications.
• 3 Year Warranty  - Like all WIA products, this product is manufactured with quality in mind. Tested under stringent conditions, we provide a 3 year warranty for your peace of mind.

Specifications:

• Applications: Stick, MIG, TIG & Plasma Cutting
• Viewing Area: 100 x 60mm
• Cartridge Size: 114 x 133 x 9.5mm
• Variable Shades: 9 to 13
• Light State: Shade 4
• Grind Mode: Yes – Shade 4
• Switching Speed (Light to Dark): 1/12,500 Sec
• Delay Speed (Dark to Light): 0.1 – 0.9 Sec
• Arc Sensors: 4
• Optical Grade: 1/1/1/1
• Weight: 555g
• Power: Lithium Battery & Solar-Assist
• Filter Lens On/Off Control: Automatic
• Operating Temperature: -10°C to +65°C

Warranty:

• 3 Years (Auto-Darkening Lens Only)
